PWM 3500W Max DC Motor Speed Controller, DC 10V-55V & 100A Max Brush Motor LED Display Stepless Speed Controller with Forward-Brake-Reverse Switch & Ajustable Potentiometer

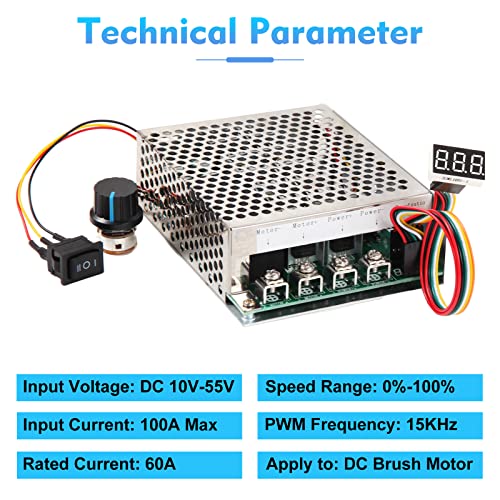

♕【Technical Parameter】Input voltage: DC 10-55V; Input max current: 100A; Continuous current: 60A; Speed range: 0%-100%; PWM frequency: 15KHz; Apply to: only DC Brush Motor

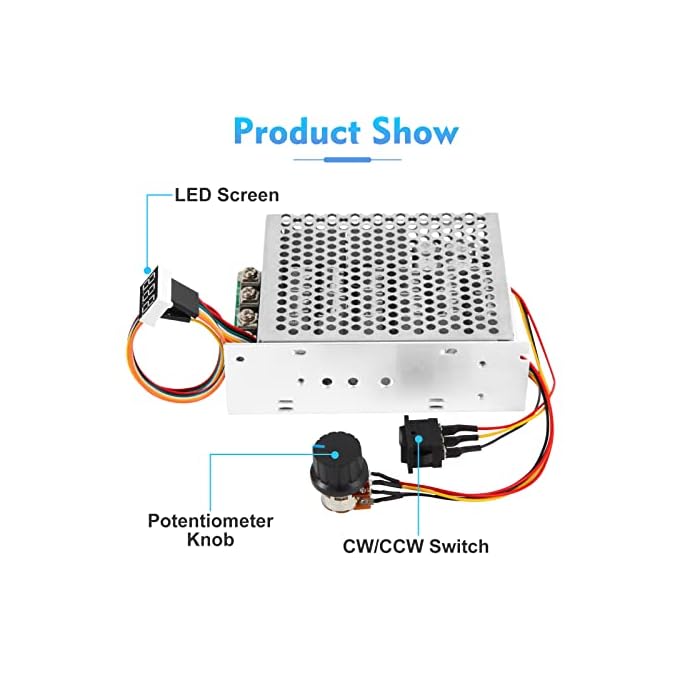

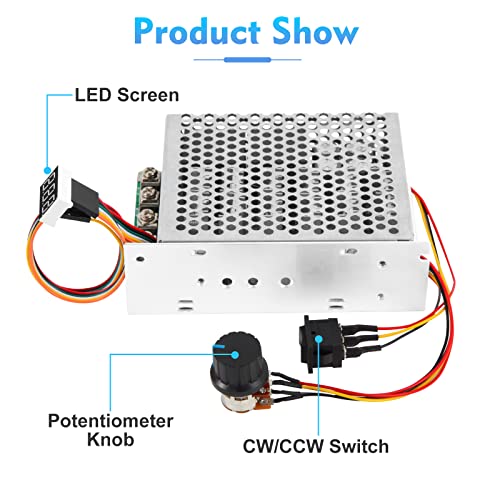

♕【Precise Speed Control】The potentiometer knob can control the motor speed from 0% to 100% of rated speed and LED screen shows the real-time speed percentage. The plastic cap can be separated from knob to make you install it to control panel.
♕【CW/CCW Switch】The switch can provide clockwise and counter clockwise rotation choice. With this latching switch, you can control the rotation direction by yourself.
♕【High Efficiency】 Superior quality electronic components are applied, including 2 pcs 100A imported relay, 4 high frequency capacitors and 12 imported high voltage MOS tube. Professional circuit design ensures long working hours.

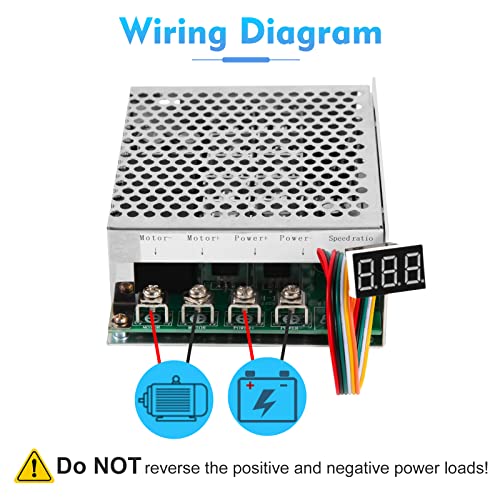

♕【Easy Installation】Wiring diagram assists you to connect the wires easily. Aluminium case protects the circuit board well, holes on the back of the shell allow you to fix it somewhere with screw.
